Euphoria Cube System Shower system with thermostat for wall mounting

Product Number
26420000
EAN
4005176407680
Colour
chrome
Rating

Product Description

  • consisting of:
  • shower arm
  • projection 400 mm
  • exposed thermostat with Aquadimmer function
  • allows change between:
  • head shower and hand shower (not included)
  • gliding element
  • Rotaflex shower hose 1500 mm (28 417 000)
  • GROHE TurboStat compact cartridge with wax thermoelement
  • GROHE SafeStop at 38°C
  • GROHE SafeStop Plus optional temperature limiter at 43°C included
  • GROHE StarLight chrome finish
  • GROHE SafeStop at 38°C
  • Inner WaterGuide for a longer life
  • Twistfree to prevent hose from twisting
  • suitable for instantaneous heaters from 18 kW/h
  • minimum flow rate 7 l/min.
  • min. recommended pressure 1.0 bar
  • CALGreen compliant
  • includes adapaters for easy installation (depth adjustable)
  • two discrete functions (non-shared)

Technical Information

CAD Data

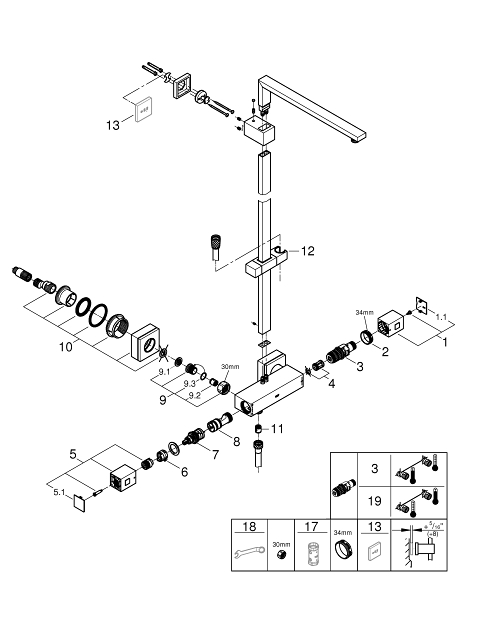

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Temperature control handle 47958000
1.1 Cover cap 4795900M
2 Fitting ring 47743000
3 Thermostatic compact cartridge 1/2" 47885000
4 Buffer 47398000
5 Shut-off handle 47960000
5.1 Cover cap 4795900M
6 Stop ring 47965000
7 Aquadimmer 12433000
8 Water flow 47751000
9 Non-return valve 47189000
9.1 Dirt strainer 0726400M
9.2 Non-return valve 08565000
9.3 O-ring ø 17 x ø 2 0305500M
10 S-union 47824000
11 Non-return valve 08565000
12 Glide element 48180000
13 Compensation disc 27933000*
14 Socket spanner 19332000*
15 Thermostatic compact cartridge 1/2" for changed waterways 47175000*
16 Special spanner 19377000*
